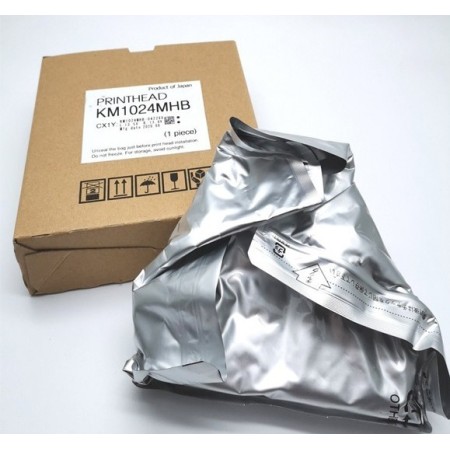

Original Konica KM1024 MHB 14PL Inkjet Printhead

The Konica Minolta KM1024 MH Printhead (MHB, 14PL) is a robust shear-mode, piezo on-demand printhead that supports both binary and 8-level greyscale printing. It delivers variable drop sizes and superior print quality without requiring additional printheads. Compared to the KM512 series, the KM1024 MH offers twice the print width and double the greyscale levels, making it ideal for high-precision, wide-format, and industrial printing applications.

Konica Minolta piezo on-demand heads operate at lower voltages than many other inkjet heads, and the advanced actuator in the KM1024 MH further reduces power consumption while maintaining consistent performance. The printhead features 1024 nozzles (512 per line) with a 14 picolitre droplet size and 360 dpi native resolution.

Equipped with an integrated heater, the KM1024 MH is ideal for UV inks but also fully compatible with solvent inks. Also known as the Konica Minolta KM1024 MHB, this genuine OEM printhead includes the Head ID and necessary waveform information, and comes with a manufacturer warranty. Specific exclusions apply to the warranty.

Specifications

Technology: On-Demand Piezo Electric (Shared Wall 3 Cycle)
Native Resolution: 360 dpi
Droplet Size: 14 picolitres
Greyscale Levels: Up to 8 drops
Total Nozzles: 1024 (512 per line)
Nozzle Spacing: 70.5 microns
Print Width: 72 mm
Firing Frequency: 12.8 kHz
Ink Compatibility: UV and Solvent Inks
Heater: Integrated
Country of Origin: Japan
Warranty: Manufacturer warranty included

Compatible Printers

Dilli: Neo Titan UV-1604DS, Neo Titan UV-1604DW, Neo UV-LED Flatbed
Docan: 2510 UV
Effetec: Effejet EF2030UV
Flora: F1 320UV, PP 2512UV
IIJ: ColourPrint-142-HQ, ColourPrint-282, ColourPrint-352, ColourPrint-72, MonoPrint 352, MonoPrint 72
Inktec: Jetrix 2030FK, Jetrix 2030FRK
Orbotech: Inkjet Legend
Scorpion: 3300 INNO-UV (2016), 3300 INNO-UV SE, 5100 INNO-UV
SwissQprint: Impala, Nyala
Tecom: TIJ-2048C-400
