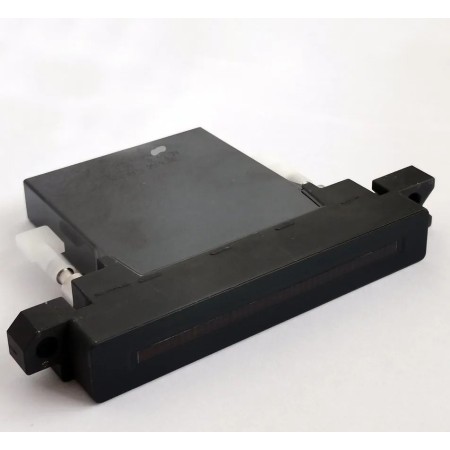

Konica Minolta KM1024i MAE-C Printhead 14PL Original

The Konica Minolta KM1024i MAE-C printhead is a robust, shear-mode, piezo on-demand printhead designed with an All-Nozzle Independent Drive System and a Multi-Line Structure. Unlike the traditional 3-cycle system, this advanced drive system enables simultaneous firing from all 1024 nozzles, delivering superior speed and precision.

With 4 lines of 256 nozzles arranged at high density and accuracy, the KM1024i MAE-C ensures excellent positioning for high-definition print quality. It supports a maximum drive frequency of 27 kHz, making it an ideal choice for developing single-pass inkjet printers capable of high-speed production.

As part of Konica Minolta’s Green Product initiative, the KM1024i MAE-C uses only about one-third of the petroleum-derived materials and harmful chemicals compared to the previous KM1024 series, without compromising performance.

Specifications

• Technology: Piezo Drop-On-Demand

• Native Resolution: 360 dpi

• Droplet Size: 14 pico litre

• Maximum Drops in Greyscale: 8 drops

• Total Nozzles: 1024 (256 per line)

• Print Width: 72 mm

• Firing Frequency: 27 kHz

• Ink Compatibility: Water-based inks

• Dimensions: 131 mm (W) × 18 mm (D) × 94 mm (H)

• Weight: Approx. 150 g

• Heater: Not integrated

This is an original Konica Minolta printhead, supplied with a manufacturer warranty.
Country of origin: Japan

Printer Compatibility

• Agfa Avinci CX3200

• Human Digital Technology QP-Jet

• Konica Nassenger Pro 120
