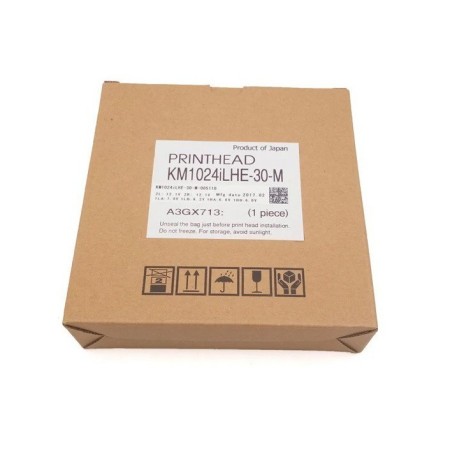

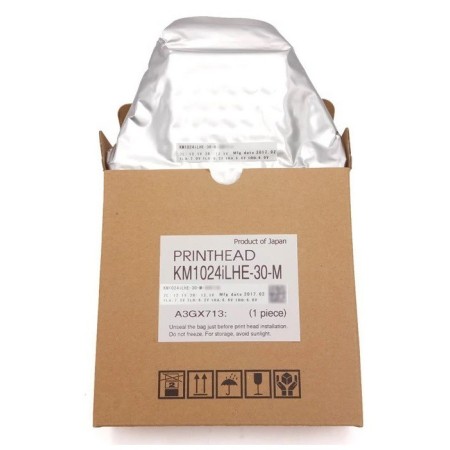

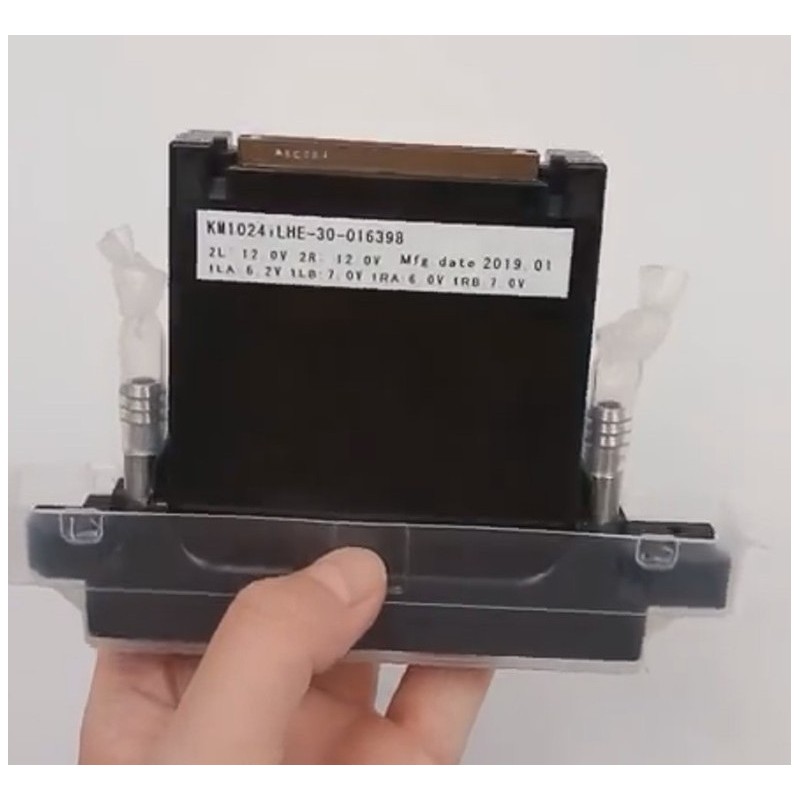

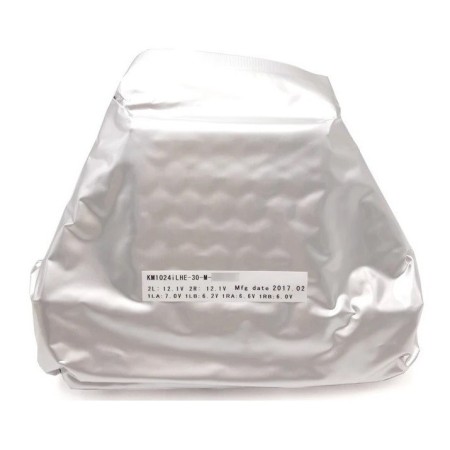

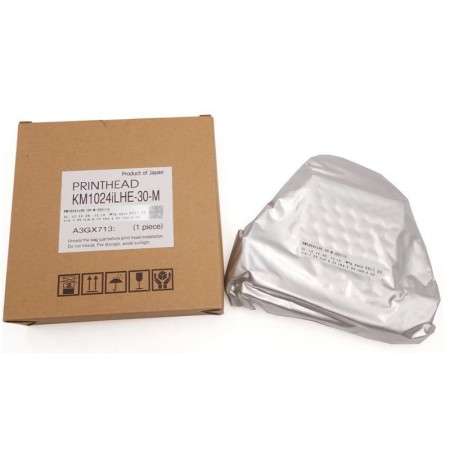

Konica 1024i LHE 30PL Print Head For Inkjet Printers

The Konica Minolta KM1024i LHE 30PL Printhead delivers high-speed, high-productivity printing with advanced independent firing technology, overcoming the speed limitations of older shared-wall systems. Proven in a wide range of single-pass systems, it can achieve print speeds of up to 80 meters per minute from a single row of heads.

The KM1024i printhead is available in 6, 14, and 30 picoliter drop sizes. This model, the 30PL variant, features a large native drop volume with an integrated heater, making it ideal for UV inks while still compatible with solvent and oil-based inks. This is a genuine Konica 1024i LHE 30PL Printhead, not an alternative KM HS1000, with Agfa part number D2+75502060010S.

Specifications

• Technology: Piezo Drop On-Demand

• Greyscale: 8 levels

• Native Resolution: 360 dpi (4 rows x 90 dpi)

• Native Drop Volume: 30 pl

• Max Drops in Greyscale: 8

• Total Nozzles: 1024 (256 x 4 rows)

• Print Width: 72.12 mm

• Max Firing Frequency: 27 kHz

• Drive Voltage: 13 ±3V

• Ink Compatibility: UV, Solvent, Oil

• Heater: Integrated

• Recommended Operating Temperature: under 55°C

• Dimensions: W131mm x D18mm x H94mm

• Weight: <150g

• Warranty: Manufacturer warranty included

• Country of Origin: Japan

Compatible Printers

• Agfa: Anapurna 100, H2500i LED, M2050i, M2500i, M3200i, M3200i LED

• Allwin: S320UV, S500UV, UVT 2030, UVT 2512, UVT+ 2030, UVT+ 2512

• Docan: H1000

• Flora: HJ 5000UV

• Human Digital Technology: M-JET

• IIJ: ColourPrint-72

• JHF Vista: R3300, R6000, V300UV, V500UV

• MGI: JETvarnish 3D One

• Optimum Digital: KR Hybrid UV

• Skyjet: FT2512i, FT3020i

• Taimes: T50UV

• Yicong: YD2512-KD
