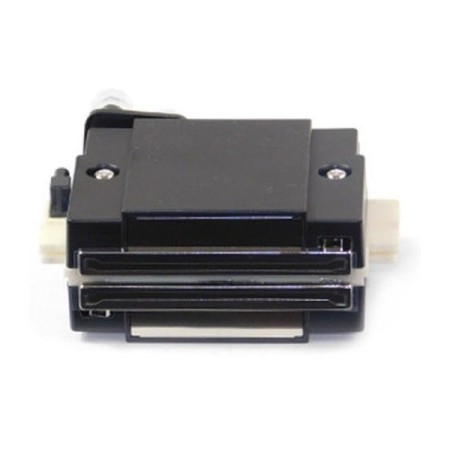

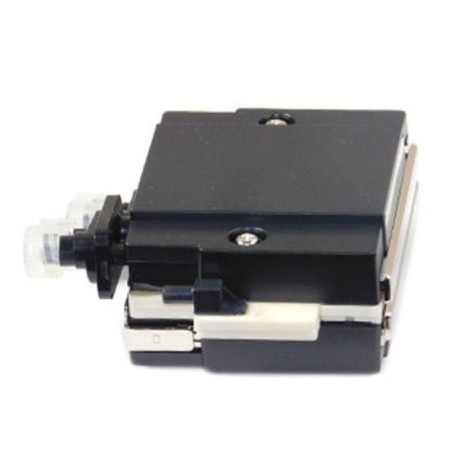

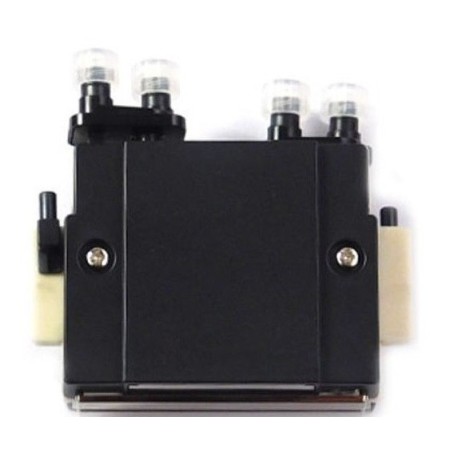

New Toshiba CE4 Printhead For Printer EFI Rastek

This printhead is suitable for EFI Rastek H652 printers. This is the original EFI part (number 45129144). We recommend to change the head cables when installing a new printhead.

Product Specifications:

    Technology: Multi-drop grayscale micro-piezo
    Grayscale levels: 16
    Active nozzles: 636
    Print swathe width: 53.6 mm
    Nozzle pitch: 169 μm
    Native resolution: 150 dpi
    Printhead weight: 148 g
    Dimensions: 85 x 70 x 23 mm
    Drop volume: 6 - 90 pl
    Typical firing frequency: 2.8 - 28 kHz
    Ink Compatibility: oil-based pigment ink and UV curable pigment ink

For Printers:
EFI Rastek H652
EFI Rastek R3225
EFI Rastek T1000
EFI Rastek T660
EFI Vutek H1625
Flora F1 180UV
Raster Daytona H700UV
