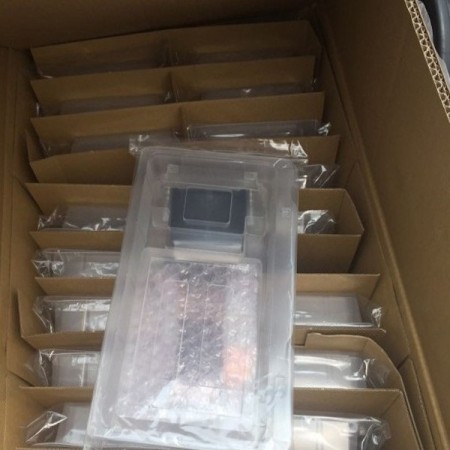

Original Ricoh GEN4L 15PL New Printhead MH2620

The Ricoh GEN4L Printhead is designed for a wide range of oil, water, solvent, and UV-based printers, including the original D.Gen Teleios Grande, D.Gen Teleios (TJ-2600), and Teleios (TJ-3333). Built with an integrated heater and thermistor, this printhead ensures stable ink performance and consistent printing results. As an original Ricoh product, it is backed by a manufacturer warranty for reliability and peace of mind.

Please note that this model is not compatible with newer printers such as the D.Gen Teleios Grande G5 or Teleios Grande/H6, which use the Ricoh GEN5 Water Printhead (PPHRI18045).

Technical Specifications

• Size: 13.2 × 120 × 75.5 mm (excluding cables)

• Head materials: Stainless steel (SST), Nickel alloy, Epoxy adhesive (direct contact with ink)

• Nozzle plate surface: Non-wet coating

• Number of nozzles: 2 × 192 (total 384 nozzles)

• Nozzle spacing: 0.1693 mm

• Piezo type: D33 Stacked PZT

• Temperature control: Integrated heater and thermistor

• Operating temperature: Up to 80°C

• Native drop volume: 15 pl

• Drop volume range: 15–45 pl

• Jetting frequency: Up to 30 kHz

• Lifespan: Up to 100 billion actuations per nozzle

• Country of origin: Japan

Compatible Printers

• AmicaSystems PA32

• d.gen Artrix GTII

• d.gen Teleios (TJ-2600)

• d.gen Teleios Grande (3333TX)

• d.gen Teleios Grande (TJ-3333)

• d.gen Teleios XL (XL2600)

The Ricoh GEN4L Printhead delivers precision, durability, and reliable output for industrial printing applications.
