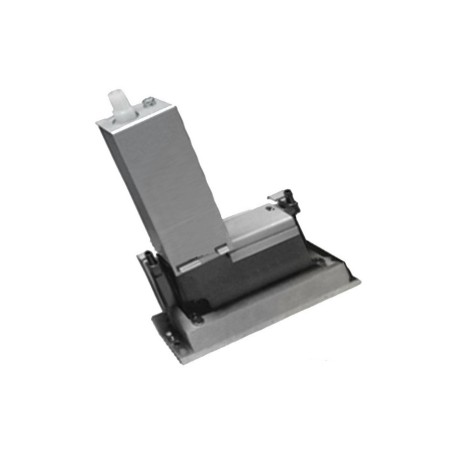

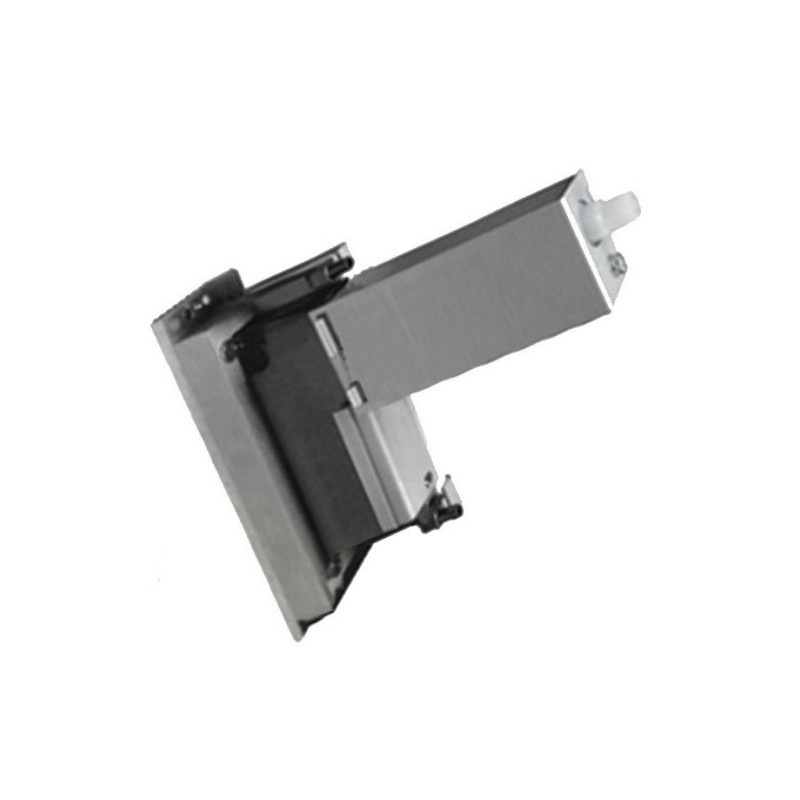

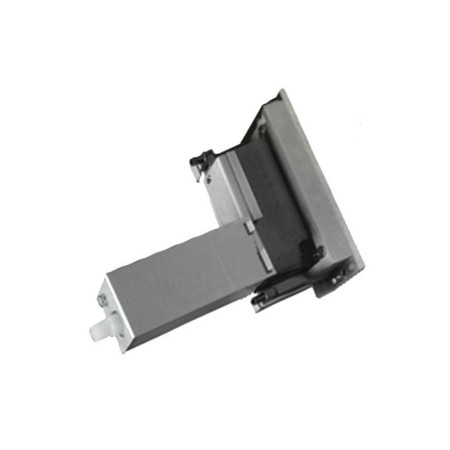

Genuine Mimaki JF Print Head Assembly - M007278
zoom_in
  • Genuine Mimaki JF Print Head Assembly - M007278
  • Genuine Mimaki JF Print Head Assembly - M007278
  • Genuine Mimaki JF Print Head Assembly - M007278

New Mimaki Printhead M007278 For Mimaki Printers JF-1610 - JF-1631

$571.00

This Mimaki JF Print Head Assembly on-demand piezo electric inkjet print head part number M007278 is designed for industrial applications with high print quality.

Type - printheads

Quantity

Mimaki JF Print Head Assembly – Compatible with M007278

The Mimaki JF Print Head Assembly is an advanced on-demand piezoelectric inkjet printhead designed for industrial applications that require exceptional print quality.

Unlike conventional binary printheads, this grayscale technology can jet multiple drops within a single dot, producing up to 16 levels of grey. Each dot is formed with ink droplets ranging from 6 pico litre to 90 pico litre, ensuring smooth gradations, sharp detail, and high-resolution output.

The assembly features 2 ink inlet ports and a robust chassis with a built-in water channel and complete sealing for easy temperature control and reliable performance. It includes the CA4 printhead, compression damper, and damper cover, along with clear assembly instructions.

✅ Fully compatible with Mimaki Part Number M007278

Specifications:

  • Technology: On-Demand Piezo Electric

  • Maximum Resolution: 1200 dpi

  • Droplet Size: 6 – 90 pico litre

  • Grayscale Levels: 16

  • Total Nozzles: 318

  • Nozzle Spacing: 169 microns

  • Firing Frequency: 28 kHz (1 drop) / 2.8 kHz (15 drops)

  • Driving Voltage: 14 – 31 V

  • Ink Compatibility: Oil-based pigment ink, UV ink

Printer Compatibility:

  • Mimaki JF-1610

  • Mimaki JF-1631

M007278
15 Items

Specific References

MPN
M007278
