StarFire SG1024/MA  Inkjet Printhead Use For Apsom Technologies SMART-6000 4H
zoom_in
  • -20%
  • StarFire SG1024/MA  Inkjet Printhead Use For Apsom Technologies SMART-6000 4H
  • StarFire SG1024/MA  Inkjet Printhead Use For Apsom Technologies SMART-6000 4H
  • StarFire SG1024/MA  Inkjet Printhead Use For Apsom Technologies SMART-6000 4H

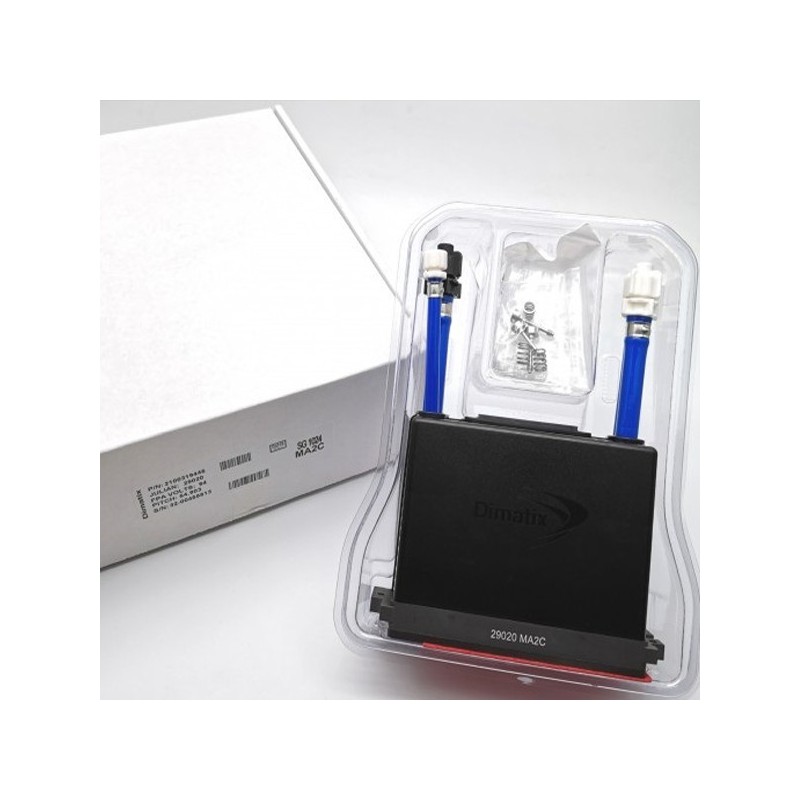

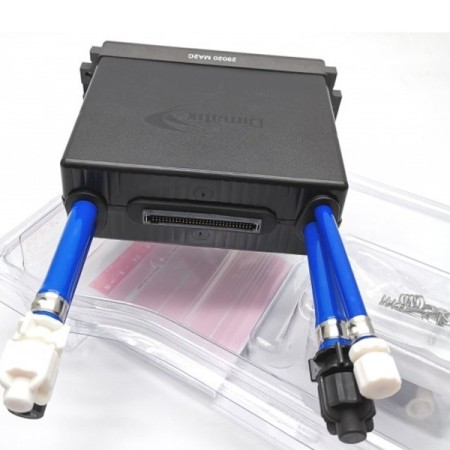

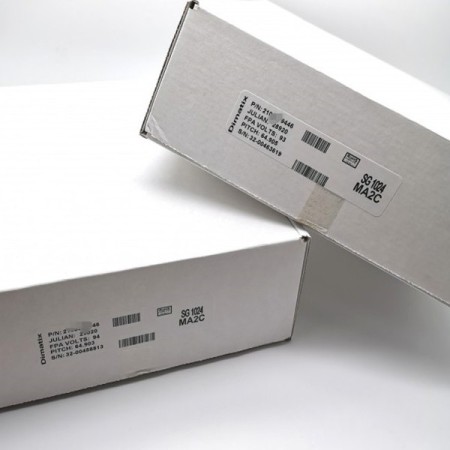

New Dimatix StarFire SG1024/MA Printhead

$946.40
$1,183.00

The Dimatix StarFire SG1024/MA is compatible with solvent, UV-curable, and aqueous based inks and maintenance fluids.

Quantity

The StarFire SG1024/MA is compatible with solvent, UV-curable, and aqueous based inks and maintenance fluids. Using RediJet™ technology, the SG1024/MA continuously recirculates inks through the printhead at the nozzle and refill chamber to increase open time, reduce downtime and improve startup, especially for highly pigmented and fast drying inks. RediJet allows StarFire printheads to be quickly and easily primed with minimal ink waste thereby increasing the inherent productive capacity of the printing system by reducing maintenance times and associated costs.

Specifications :
- Incorporate VersaDrop™ binary and grayscale jetting
- Continuous ink recirculation with RediJet™
- Single color operation
- Print Width: 64.96 mm [2.55 in.]
- Nominal Drop Size: 30 picoliter
- Adj. Range for Droplet Size: 30 to 80 picoliter
- Tot. Amount of Nozzles: 1024 individually addressable jets
- Nozzle Spacing: 0.0635 mm [0.0025 in.]
- Max. Frequency: 30 kHz for 30 picoliter droplets, 11kHz for 80 picoliter droplets.
- Resolution: Up to 400 dpi
- Operating Temperature: up to 55°C
- Ink Compatibility: UV-curable, organic solvents, and aqueous inks

Compatibility Printer :

     Apsom Technologies SMART-6000 4H

     Jet FX

SG1024/MA
