Genuine Spectra Printhead SE-128 AA

Deskripsi Produk

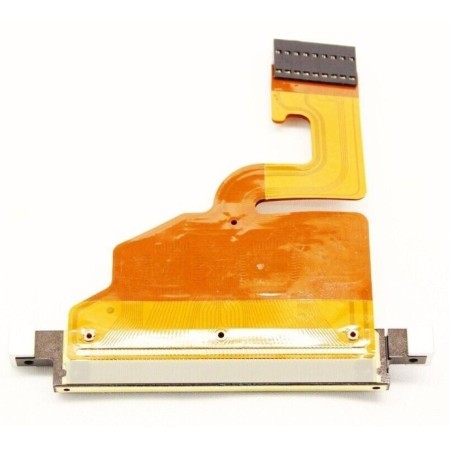

The Spectra SE-128 AA Printhead is a high-performance, robust, and reliable jetting assembly designed for a wide range of wide-format printers, delivering resolutions up to 900 dpi.

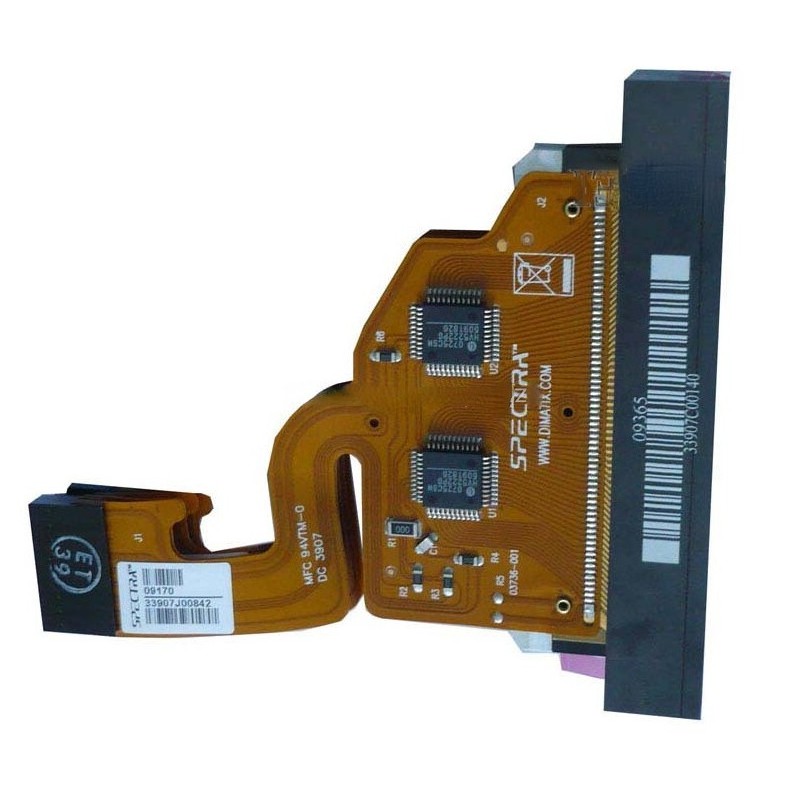

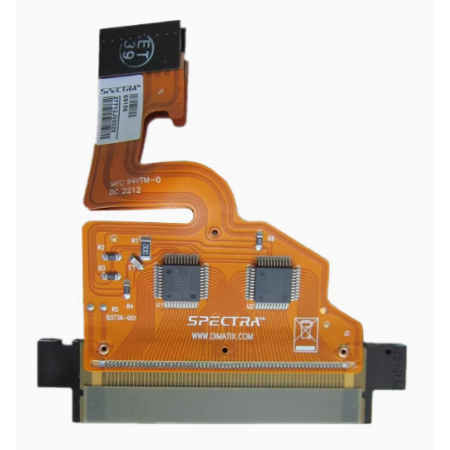

It is built with two electrically independent piezoelectric slices, each providing 64 addressable channels, for a total of 128 nozzles. Calibrated for a 30 pl droplet size with an adjustable range of 25–30 pl, this printhead supports a maximum firing frequency of 40 kHz, ensuring fast and precise printing results.

The integrated serial-to-parallel converters allow flexibility in operation, enabling all jets to fire either simultaneously or individually. Manufactured in the United States and tested under strict Dimatix Spectra quality control, the SE-128 AA printhead ensures durability, reliability, and consistent performance. It comes with full manufacturer warranty coverage.

This model is compatible with both solvent and UV-curable inks, making it highly versatile for industrial printing applications.

Key Specifications

• Technology: Piezo Electric Drop-on-Demand

• Maximum Resolution: 900 dpi

• Calibrated Droplet Size: 30 pl

• Adjustable Droplet Size Range: 25 – 30 pl

• Total Nozzles: 128

• Nozzle Spacing: 508 microns

• Nozzle Diameter: 35 microns

• Firing Frequency: up to 40 kHz

• Operating Temperature: up to 90°C

• Ink Compatibility: Solvent and UV inks

Compatible Printers

Agfa

• Columbia Turbo

• Jeti 1224 UV HDC FTR

• Jeti 2030 X-2 UV Flatbed

• Jeti 3150 X-2 UV Flatbed

• Jeti 3312 Solvent RTR

• Jeti 3324 AquaJet RTR

• Jeti 3324 Solvent RTR

• Jeti 3324 UV RTR

• Jeti 3348 Solvent HSS RTR

• Jeti 3348 UV Galaxy RTR

• Jeti 3348 UV Jetspeed RTR

• Jeti 5024 Solvent RTR

• Jeti 5024 UV JetSpeed RTR

• Jeti 5048 UV XL JetSpeed

• Onset S20

• Onset S70

• Spyder 320

• Spyder 320Q

• Spyder V

Dilli

• Neo UV-LED GlassTech

Durst

• Rho 320R

• Rhopac 160

Graphics One

• Fuzion UV

Luscher

• JetPrint 3530 UV

Spühl Virtu

• RS 25

• RS 35

• RS 36

• RS 50
